Quantities are based on a 3, 000 sq. ft.* room size with 24” x 24” ceiling tiles.
*Additional 2% material was added to cover any breaks or waste
Item in grid system:
144" Main Beam
24" Cross Tee
48" Cross Tee
144" Wall Molding
Quantity (cartons)(ctns):
1
1
1
1
1
Clear selections and start over
Please note: This is an estimate. Additional materials may be required based on your specific room layout or site conditions.
Contact us for additional help for unique spaces.
4 items
$3,580.24
Quantities are based on a 0 sq. ft.* room size.
*Additional 2% material was added to cover any space discrepancies
The combination of grid size and edge profile will affect the visual appearance and ease of installation of your suspended ceiling. For more details, click here
Edge profile
Grid
Tile
Square Lay-in
Square Tegular
Beveled Tegular
Angled Tegular
Flush Tegular
Vector
Tongue & Groove
Grid size
The standard width for ceiling grid (metal frame around each tile) is 15/16" wide - about the same size as the diameter of a quarter. A thinner version, 9/16", is also common and growing in popularity.
Details
The Armstrong Prelude Plus XL 15/16" Environmental Tee System offers maximum protection when severe environmental performance is required. With 15/16"-wide main beams, stab-in cross-tees, and wall moldings, this grid provides dimensional stability and resists rust. All aluminum for maximum moisture resistance.
TYPICAL APPLICATIONS:
Indoor swimming pools with proper ventilation and hanger wire
The Armstrong Prelude Plus XL 15/16" Environmental Tee System offers maximum protection when severe environmental performance is required. With 15/16"-wide main beams, stab-in cross-tees, and wall moldings, this grid provides dimensional stability and resists rust. All aluminum for maximum moisture resistance.
TYPICAL APPLICATIONS:
Indoor swimming pools with proper ventilation and hanger wire
This product may be disinfected according to CDC recommendations using EPA-approved disinfectant cleaners per Armstrong Cleaning & Disinfecting Guidelines.
This product may be disinfected according to CDC recommendations using EPA-approved disinfectant cleaners per Armstrong Cleaning & Disinfecting Guidelines.
This product may be disinfected according to CDC recommendations using EPA-approved disinfectant cleaners per Armstrong Cleaning & Disinfecting Guidelines.
Customer Reviews
0.0Based on 0 Reviews
5 ★
0%
0
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a ReviewAsk a Question
Reviews
Questions
Thank you for posting a question! Your question will appear on the site once we've answered it.
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
There are many parts and pieces in a grid system. See the image above for the anatomy of a drop ceiling grid system.
A. Main Beams carry the load of the grid system, typically 12’ or 6’. B. Cross Tees are the supporting grid pieces that attach perpendicular to the main beams, helping create the 24” x 24” or 24” x 48” openings needed for your tiles. C. Wall Moldings are used as finishing trim to hang against the walls in the space. D. Ceiling Tiles are the tiles used to make up the drop ceiling. E. Hanger Wires attach to the ceiling joists and are how the main beams and cross tees hang. F. Plenum is the area or space in between the drop ceiling and the structure above, typically floor joists or an old ceiling.
Included in the grid system are main beams, wall moldings, cross tees, and hanger wires.

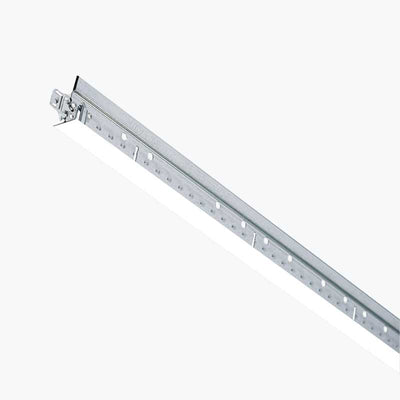

Main beams carry the load of the grid system

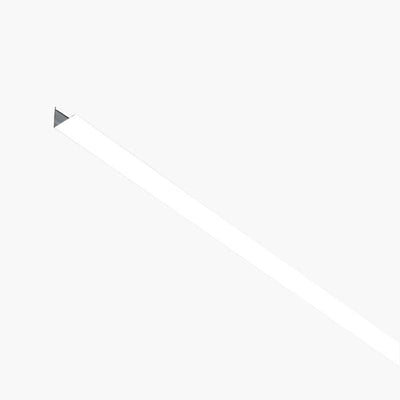

Wall moldings are used as a finishing trim to hang against the walls in the space
Cross tees are the supporting grid pieces that attach perpendicular to the main beams, helping create the 24” x 24” or 24” x 48” opening needed for your tiles. Alternate cross tee sizes are also available for less common tile sizes.
Hanger wires attach to the ceiling joists and are how the main beams and cross tees hang
ML and XL describe how main beams and cross tees attach to one another. The ML is a hook grid system and the XL is a stab grid system. The XL is required for seismic and specialty ceiling applications but is also the most common connection type across the United States.
The type of grid system needed is dependent on a few different things. First thing to consider is what size and type of tiles will be used within the space. Another thing to consider is the look you want. We have grid systems available in many styles and sizes. Additionally, you have unique circumstances to consider. We have grid systems for use in seismic areas, fire rated grids, as well as grids used for Clean Rooms. As always, reach out to one of our customer support experts or our installation services team for guidance on your specific circumstance.
Yes, our ceiling grids can be cleaned. Our grid components are made from hot-dipped galvanized steel, with a corrosion-resistant zinc finish protecting it from rust. Refer to our cleaning guide [PDF] and disinfecting guide [PDF] for more info.
A 3” drop from the face of the grid is the minimum clearance needed for a drop/suspended ceiling. It’s not only a matter of getting the boards in, but the installers need room to twist the hanger wires, etc. Fiberglass is, of course, easiest to work with in the minimum clearance situation. More clearance can be given whenever possible to make the installation easier.
The default and preferred method of payment for Kanopi is to pay online using a credit card (we accept all major credit cards). However, in some cases, you might be able to buy now and pay later using alternate payment methods including a PO, invoice, or check.
Connect with one of our customer service team members by phone at (866) 438-8833, by submitting this form, or chat with us directly on our site to discuss your company's specific payment needs and see if you qualify.
Started in 2020, Kanopi is the direct-to-consumer platform of Armstrong World Industries. Kanopi serves the portion of the market of small general contractors, business owners, general managers, property managers, facility managers, and homeowners.Typically, jobs under 20,000 square feet can be serviced through Kanopi. Armstrong works with national distributors, architects, interior designers, and major commercial projects.
Yes. Almost all of the products sold on Kanopibyarmstrong.com are Armstrong Ceilings products. Kanopi will continue to expand its product offering of Armstrong products, as well as additional manufacturers added on in the future.
FIRE GUARD means that the product is engineered and tested as part of a fire resistant system, which includes tile, grid and the structure itself. Please check local building codes requirements for your space. The following link will direct you to additional information and support for Armstrong's Fire Resistant ceiling systems.
Fire ratings refer to flame spread and smoke development. Ratings indicate how rapidly flame spreads on one surface as compared to another. The flame spread rating is broken into three categories: Class A, Class B and Class C. Class A products have a flame-spread of 25 or less, and smoke developed of 50 or less. Class C products have a flame-spread of 76-200, and smoke developed of 0-450. Class A products are appropriate in the majority of commercial applications and Class C products are appropriate in most residential applications.
Armstrong products come packaged in cartons to protect and maintain product integrity. Shipping individual or smaller groups of tiles or grid can impact the quality of tile or grid. Kanopi sells solely in carton format because of this reason. BONUS: It's always good to have extra material on hand for accidents or damage over time.
